One of the great things about Csound is that the format of the orchestra and score files are pure text. The composer can use any editor he or she pleases, without being tied to a specific platform. There are a few text editors specialized in working with Csound such as the Csound Editor [1]. In this paper we will see how to use Emacs as a Csound development environment.

Emacs is a very powerful all-purpose editor. With it one can edit and manage files, read news, mail, and RSS feeds, and even play Tetris. An introduction to Emacs is out of the scope of this paper, but there is plenty of documentation available on-line and also with Emacs itself. The best place to start is the "Guided Tour of Emacs" [2]. The Emacs Tutorial is available inside Emacs, under the Help menu. The "GNU Emacs Manual" can be read on-line [3] or inside Emacs under the Help menu. Finally, the Emacs Wiki is a nice place to find things related to Emacs [4].

Csound-x is an Emacs library (a mode, in Emacs parlance) that allows one to compose music for Csound without leaving Emacs. With it one can run Csound (real time or not), play files, format orchestras and scores, edit and visualize functions, calculate and edit columns in scores in the same way as in spreadsheets, access documentation for an opcode with a keystroke, and so on.

I. Installing and Configuring Csound-x

Csound-x does not come with Emacs, so we need to download and install it. The latest version of Csound-x can be found at the address listed below [5]. We must download and unzip it to a local folder and tell Emacs where to find Csound-x. Emacs stores the configuration for each user in the file .emacs in the home directory. Put the following lines in your .emacs, adjusting the path where Csound-x was unzipped:

(add-to-list 'load-path "~/stef-elisp")
(require 'stef-elisp)

To access the Csound documentation from Emacs, we will need to download the Csound Manual in HTML format and unzip it. In this paper I have downloaded it from the address listed below [6] and unzipped it in ~/csound/html.

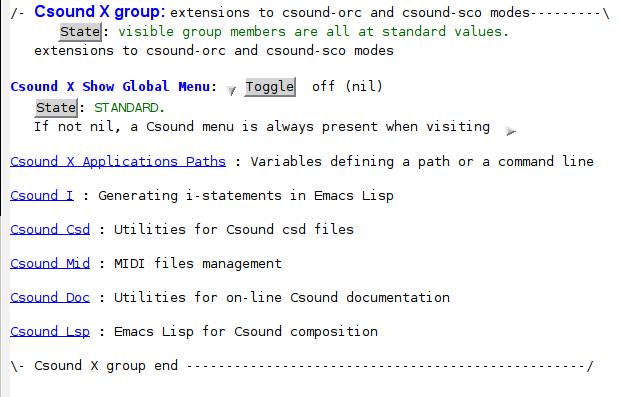

Next, we want to customize Csound-x. We can customize it by editing .emacs directly or use the emacs custom interface. To use the custom interface type M-x customize-group RET csound-x RET. Figure 1 shows the items available for customization. The option “Csound X Applications Paths'' defines the value for Csound environment variables such as SADIR and INCDIR.

Figure 1.The Emacs Custom Interface

If we click in “Csound X Applications Paths'' we should see a window similar to the one in Figure 2. Edit the values to mach your environment and when ready save the options by typing C-x C-c. Custom will insert automatically the appropriate code in .emacs for you. Besides the common Csound environment variables, we can define a program to play and open wavfiles and can also define the directory where we unzipped the HTML files for the Csound Manual.

Figure 2.Customizing Environment Variables

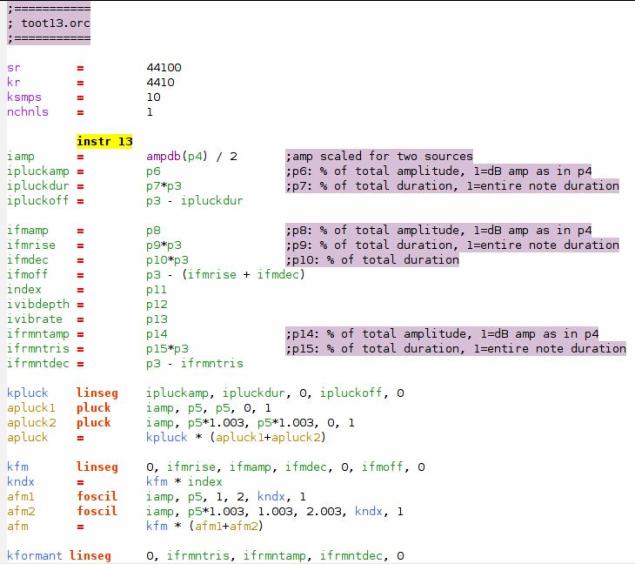

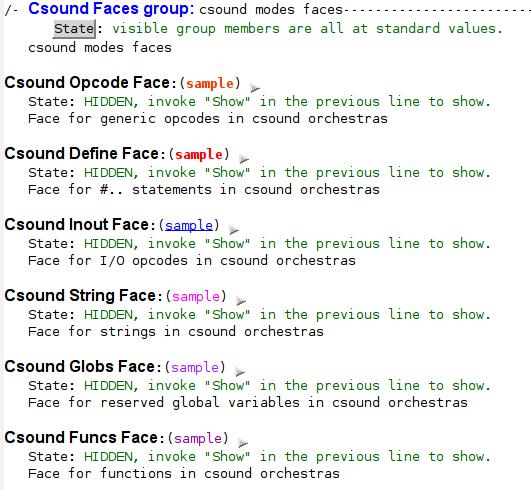

The most basic feature we can expect in an editor to write code is syntax highlighting. Csound-x comes with a configuration that is too colorful to my taste (Figure 3). It is easy to change the color scheme by typing M-x customize-face RET csound-x RET. Emacs will show a list of faces that we can change (Figure 4).

Figure 3. Default Syntax Highlighting


Figure 4.Changing the Default Colors

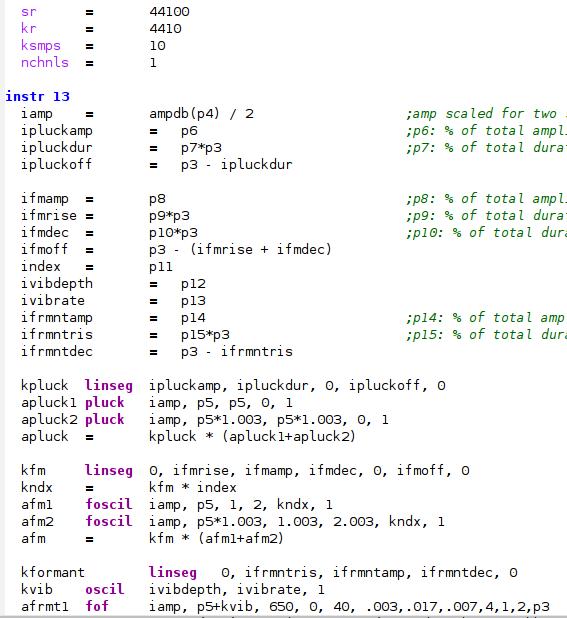

Figure 5, below, shows an orchestra with my customized syntax highlighting colors.

Figure 5.Customized Syntax Highlighting

II. Using Csound-x

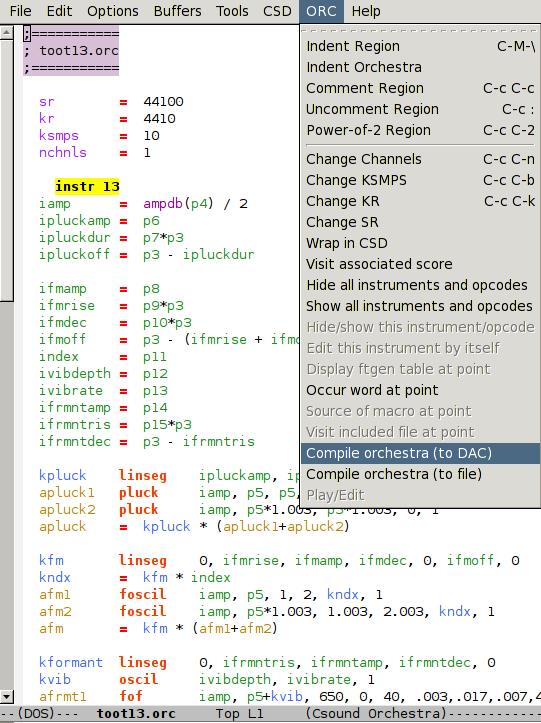

One of the nicest things about Csound-x is that we can open just an orchestra an ask to compile it either to DAC or to a file. Csound-x will try to read the score. To compile from an orchestra we select the menu ORC, then Compile orchestra (to DAC) (Figure 6). To compile from a score the process is the same, except we select the SCO menu then Compile score (to DAC).

Figure 6.Compile to DAC

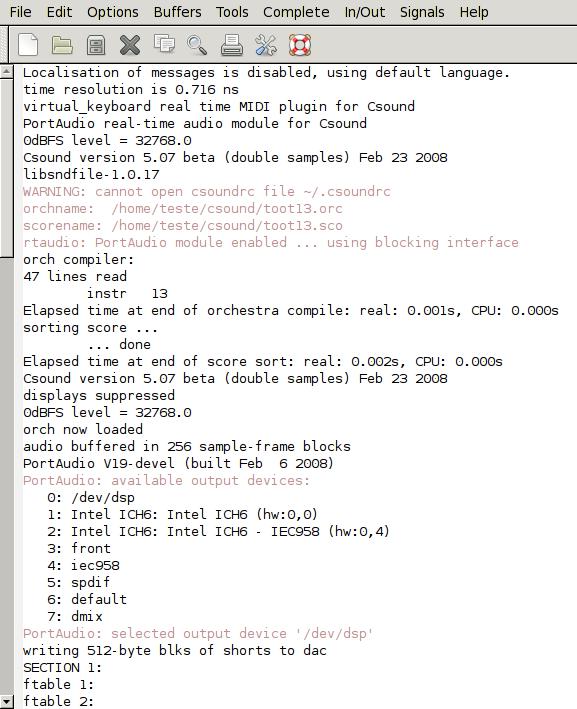

When we compile an orchestra with Csound-x, Csound runs as a sub-process inside Emacs (Figure 7). In the end the Csound compilation output is just text we can copy and paste inside Emacs as needed.

Figure 7. The Compilation Output

Csound-x opens the compilation output in another window by default (a frame, in Emacs parlance). If you prefer to have it open in the same window, put the following line in your .emacs:

(add-to-list 'same-window-buffer-names "*Csound Log*")

Besides syntax highlighting, Csound-x has nice features to help with editing Csound orchestra and scores. We can reformat indentation of the whole orchestra by selecting Indent Orchestra in the ORC menu. This helps to keep instruments formatted consistently. From the ORC menu we can open the associated score, and vice-versa from the SCO menu.

To find the documentation for an opcode, we put the cursor before or after the opcode and select the menu CSD -> Documentation -> Document Opcode. This will open the corresponding page from the Csound Manual in your default web browser. Csound-x will open a new browser window each time we ask for the documentation of an opcode. If you use Firefox, you may want to put the following code in your .emacs to open the pages in new tabs:

(defun firefox-new-tab (url &optional new-window)
  "Open URL in a new tab in Firefox."
  (interactive (browse-url-interactive-arg "URL: "))
  (unless (string= ""  (shell-command-to-string (concat "firefox -remote 'openURL("
    (message "Starting Firefox...")
    (start-process (concat "firefox " url) nil "firefox" url)
    (message "Starting Firefox...done")))

(setq browse-url-browser-function 'firefox-new-tab)

Another option for those who like to stay inside Emacs is to use the w3m [7] web browser inside Emacs all the time, instead of Firefox.

A few useful functions like compiling or playing an orchestra do not have key bindings defined by default. You can define key bindings for these functions by putting the following code in your .emacs:

(add-hook 'csound-orc-mode-hook
          (lambda ()
            (define-key csound-orc-mode-map (kbd "C-c C-a") 'csound-new-instr)
            (define-key csound-orc-mode-map (kbd "C-c C-c") 'cscsd-play-orchestra)
            (define-key csound-orc-mode-map (kbd "C-c C-w") 'cscsd-play)
            (define-key csound-orc-mode-map (kbd "C-c C-d") 'csdoc-html-document-opcode)
            (define-key csound-orc-mode-map (kbd "C-c C-f") 'cscsd-compile-orchestra)))

(add-hook 'csound-sco-mode-hook
          (lambda ()
            (define-key csound-sco-mode-map (kbd "C-c C-c") 'cscsd-play-score)
            (define-key csound-orc-mode-map (kbd "C-c C-w") 'cscsd-play)
            (define-key csound-sco-mode-map (kbd "C-c C-f") 'cscsd-compile-score)))

Now we can compile an orchestra or score to DAC with C-c C-c, compile an orchestra or score to a file with C-c C-f, open a soundfile with a sound editor with C-c C-w, and view the documentation of an opcode with C-c C-d. Another useful key binding is C-c C-a to create a new instrument block. The function to make a new instrument block was defined with define-skeleton. This defines a simple template where the character “_'' indicates where the cursor should stay after the template has been inserted into the text.

(define-skeleton csound-new-instr
  "Insert a new csound instrument" nil
  > "instr " \_ "" \n
  > "" \n
  > "endin")

Csound-x can insert templates for opcodes based on information from the Csound Manual. The menu option ORC -> Documentation -> Insert Opcode Template will ask for an opcode and will insert the usage example from the Csound Manual. For example, for the oscil Opcode Csound-x will insert the following code at the cursor point:

ares oscil xamp, xcps, ifn [, iphs]
kres oscil kamp, kcps, ifn [, iphs]

Csound-x also can fetch the opcode examples from the Csound Manual, with ORC -> Documentation -> Fetch Opcode Example. It is a very convenient way to test the examples from the Csound Manual.

Another way of inserting templates is using the “code repository'' feature. This uses chunks of code stored in the Csound Editor [1] file format. To use this feature the cscsd-csr-files variable has to be set to a list of files that will be used. For example, in my .emacs I have:

(setq cscsd-csr-files '("~/csound/docs/csedit.csr" "~/csound/docs/somecode.csr"))

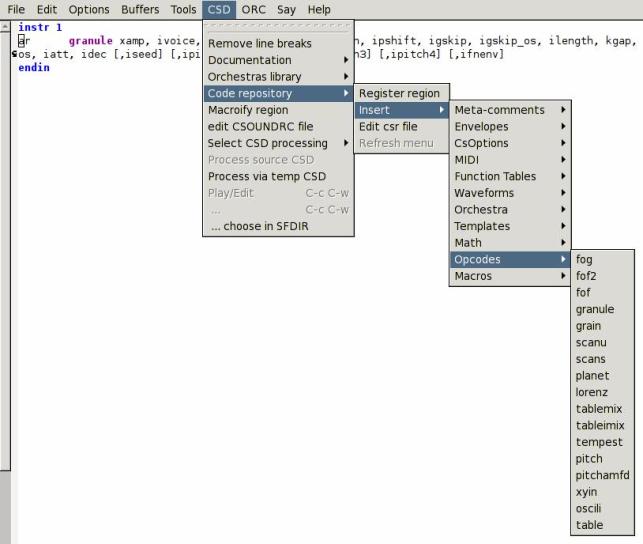

By accessing the Code Repository menu we can insert and create many different types of templates (Figure 8).

Figure 8. Code Repository

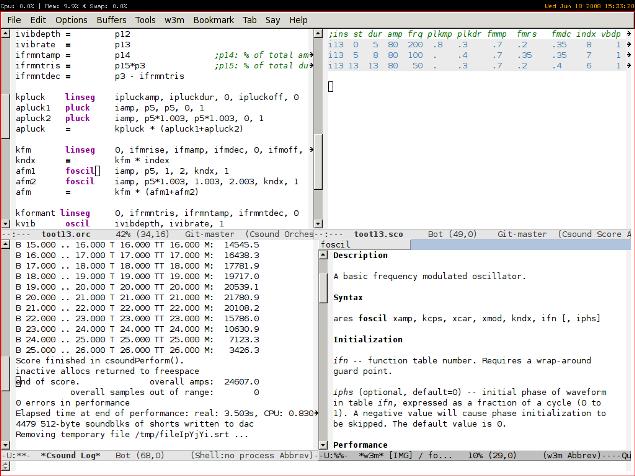

Most features discussed so far can be seen in Figure 9, below. It shows a Csound orchestra and score, the output of the compilation and the Csound Manual page for the foscil Opcode in the w3m browser, all in the same Emacs window.

Figure 9.Features of Csound-x

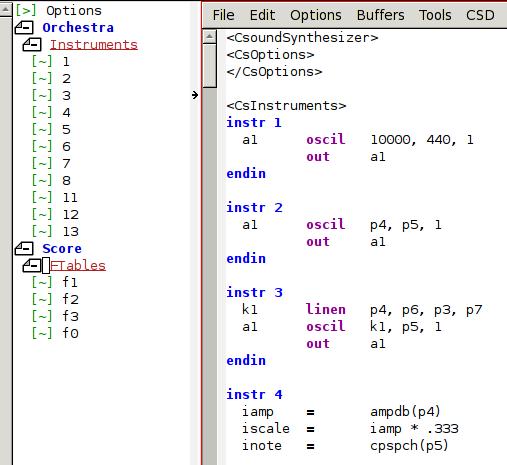

Csound-x has a superb support for CSD files. We can combine an orchestra and score in a single CSD file with the menu option ORC -> Wrap in CSD. A problem in working with long CSD files with lots of instrument blocks is to quickly locate items. With the emacs speedbar we can navigate trough large files easily. Figure 10 shows the speedbar for a CSD file with 11 instruments. To go to the location where the instrument is defined all we have to do is to click on the instrument number on the speedbar (on the left side). The menu CSD -> Display Speedbar shows the speedbar in another window.

Figure 10. Speedbar

Another neat feature of Csound-x is the possibility to display and edit f-tables inside Emacs (SCO -> Display f-table). We just have to choose the table number and Emacs shows the table in a special buffer (Figure 11). To edit the table we click in the [edit] "button", change the input data of the table and Emacs changes the table to reflect the new values (Figure 12).

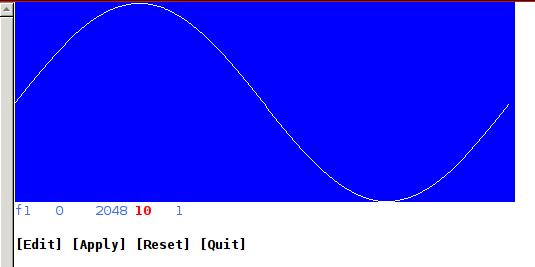

Figure 11. Original f-table

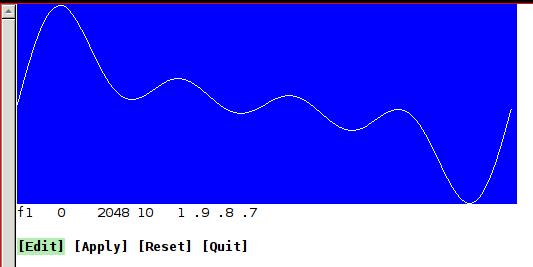

Figure 12.Changed f-table

III. Conclusion

In this paper we saw the basic features of Csound-x. They are enough features to provide a functional and productive development environment for Csound. In the next paper we will see more advanced features like working with score matrices, customizing Emacs to browse and compile files from a collection of Csound instruments, and embed Emacs Lisp in Csound instruments.
